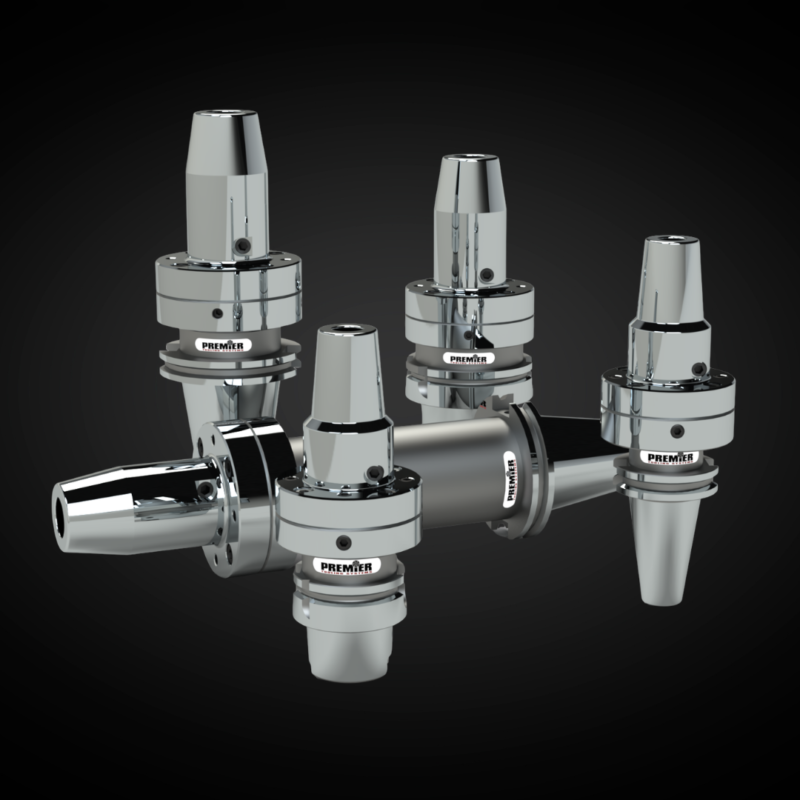

Tool Holding and Clamping Systems

Reliable tool holding solutions engineered for maximum rigidity, repeatability, and machining stability.

Description

Premier Tooling Systems provides advanced tool holding and clamping systems engineered to improve machining accuracy, stability and process reliability.

Our steerable hydraulic clamping technology gives manufacturers precise control over tool alignment by allowing radial and axial runout (T.I.R.) to be adjusted independently. This capability makes it possible to achieve extremely low — or effectively “zero” — runout even in applications with challenging length-to-diameter ratios.

The hydraulic holding system provides secure, consistent tool clamping while helping maintain cutting-tool position and machining stability throughout production.

A broad selection of spindle connections and modular configurations allows the system to be adapted to different machines and machining requirements.

Key Features

Independent adjustment of radial and axial runout
Designed to achieve extremely low T.I.R.
Hydraulic clamping for secure and repeatable toolholding
Excellent tool positioning and machining stability
Suitable for demanding length-to-diameter ratios
Modular holder and spindle adapter configurations
Customisable for application-specific requirements
Special gauge lengths available
Supports consistent and repeatable production results
Designed for high-precision boring and machining applications

Available Spindle Connections

Premier Tooling Systems offers spindle adapters for a broad range of machine interfaces, including:

CAT40
CAT50
BT40
BT50
SK40
SK50
HSK63A
HSK80A
HSK100A

Hydraulic Holder Configurations

The system includes flange-mounted hydraulic holders available in MOD80 and MOD100 configurations.

Available holder diameters shown in the brochure include:

16 mm
20 mm
25 mm
32 mm

Special gauge lengths can also be supplied for MOD80 and MOD100 spindle adapters upon request.

Applications

Precision boring
Fine boring
Reaming
Precision holemaking
Long-reach machining
High-accuracy CNC machining
Applications requiring precise runout control
Production machining
Custom tooling systems

Precision Toolholding for Demanding Applications

As machining tolerances become tighter, controlling tool runout becomes increasingly important.

Premier Tooling Systems steerable hydraulic clamping systems provide manufacturers with the ability to fine-tune tool alignment while maintaining secure and repeatable clamping. By independently adjusting radial and axial runout, the system helps maintain cutting-edge position, improve machining consistency and support demanding precision applications.
